NEXT LEVEL RACING® Elite Tablet/Button Box Mount-NLR-E020
NEXT LEVEL RACING® Elite Tablet/Button Box Mount Add-On-NLR-E020
LEADING FEATURES
1. Compatible with the Next Level Racing® Elite series Cockpits
2. Wide range of tilt and angle adjustment for fine tunning
3. Compatible with Mobile Phones, Tablets, and Button Boxes
4. Tablet Mount Bracket supporting heights from 120mm - 225mm
5. Button Box Bracket supporting heights from 35mm - 155mm
ABOUT

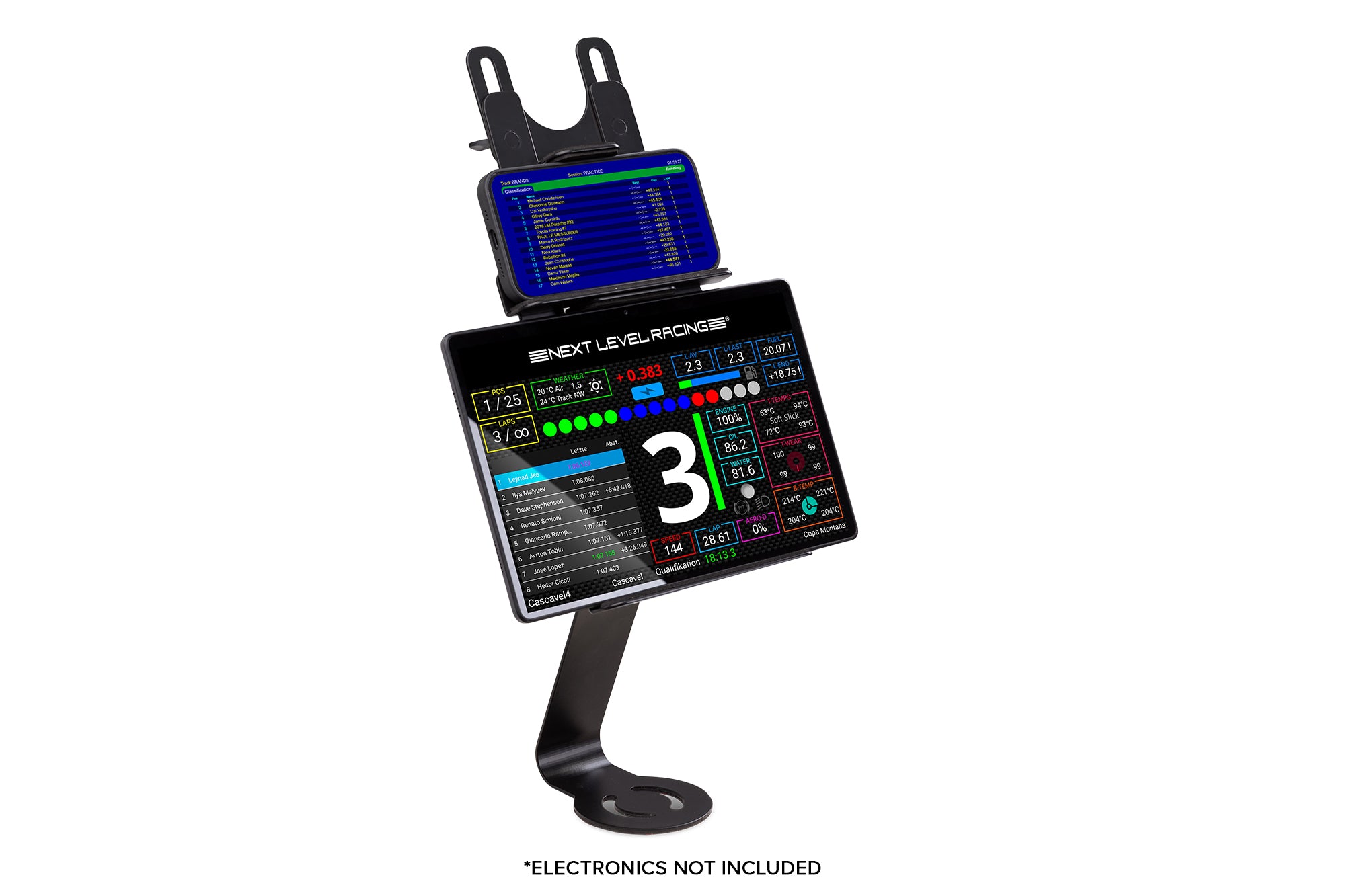

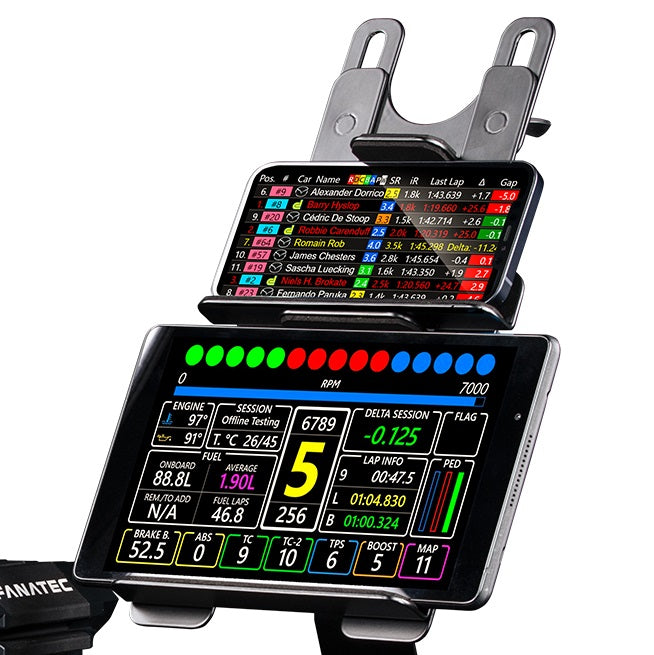

The Next Level Racing® Elite Tablet/ Button Box Add-on, is the perfect solution for the serious sim racer to complete the full informational and immersive simulation experience to have a tablet or button box within reach with complete adjustability. With a wide range of mounting options for the Elite Tablet/ Button Box Add-on, users are able to customize their simulator for the best simulation experience. By having a permanent station for a button box or a tablet, the user is able to create a more connected and informed experience with simulation.
WIDE RANGE OF ADJUSTIBILITY

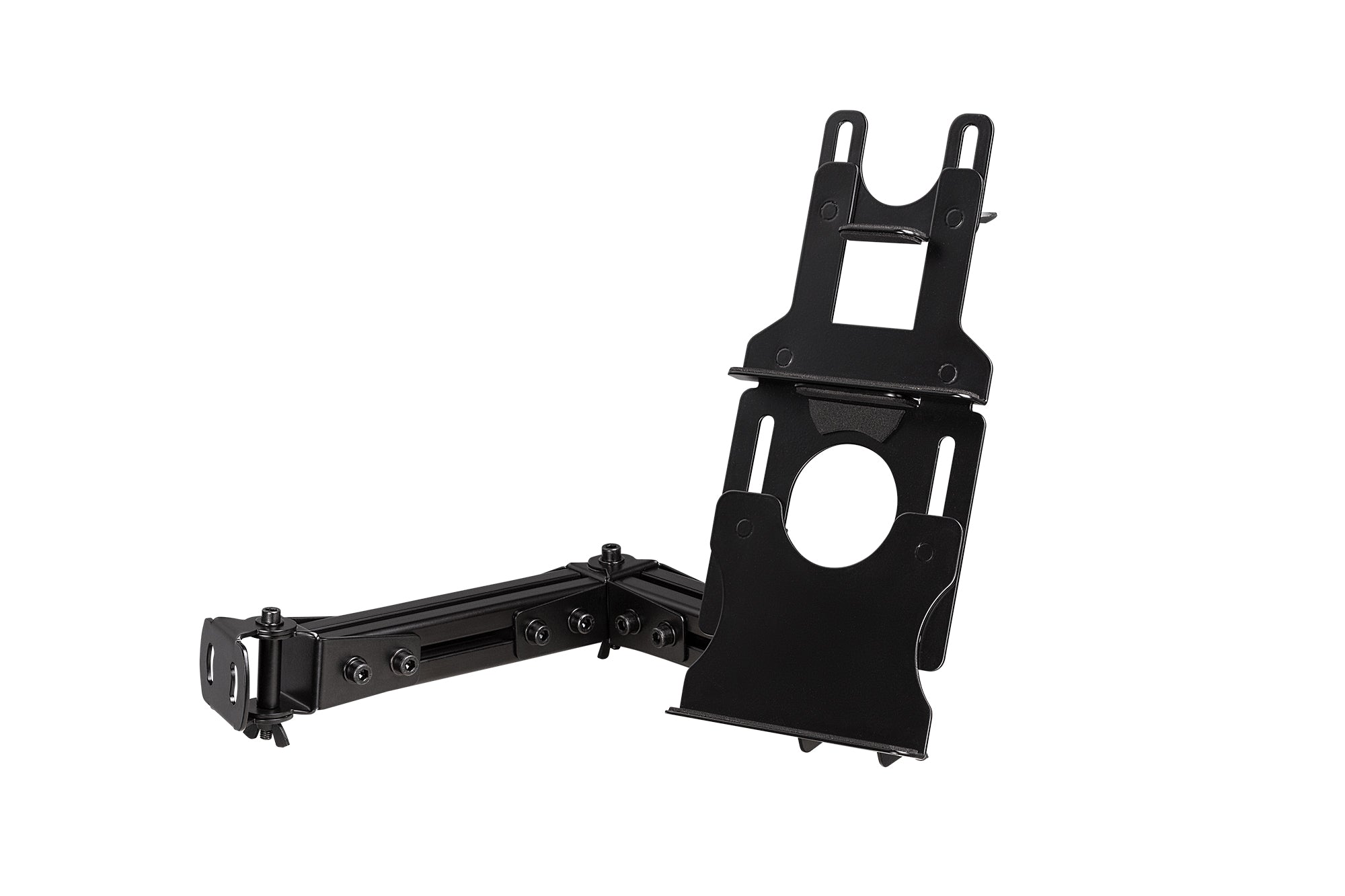

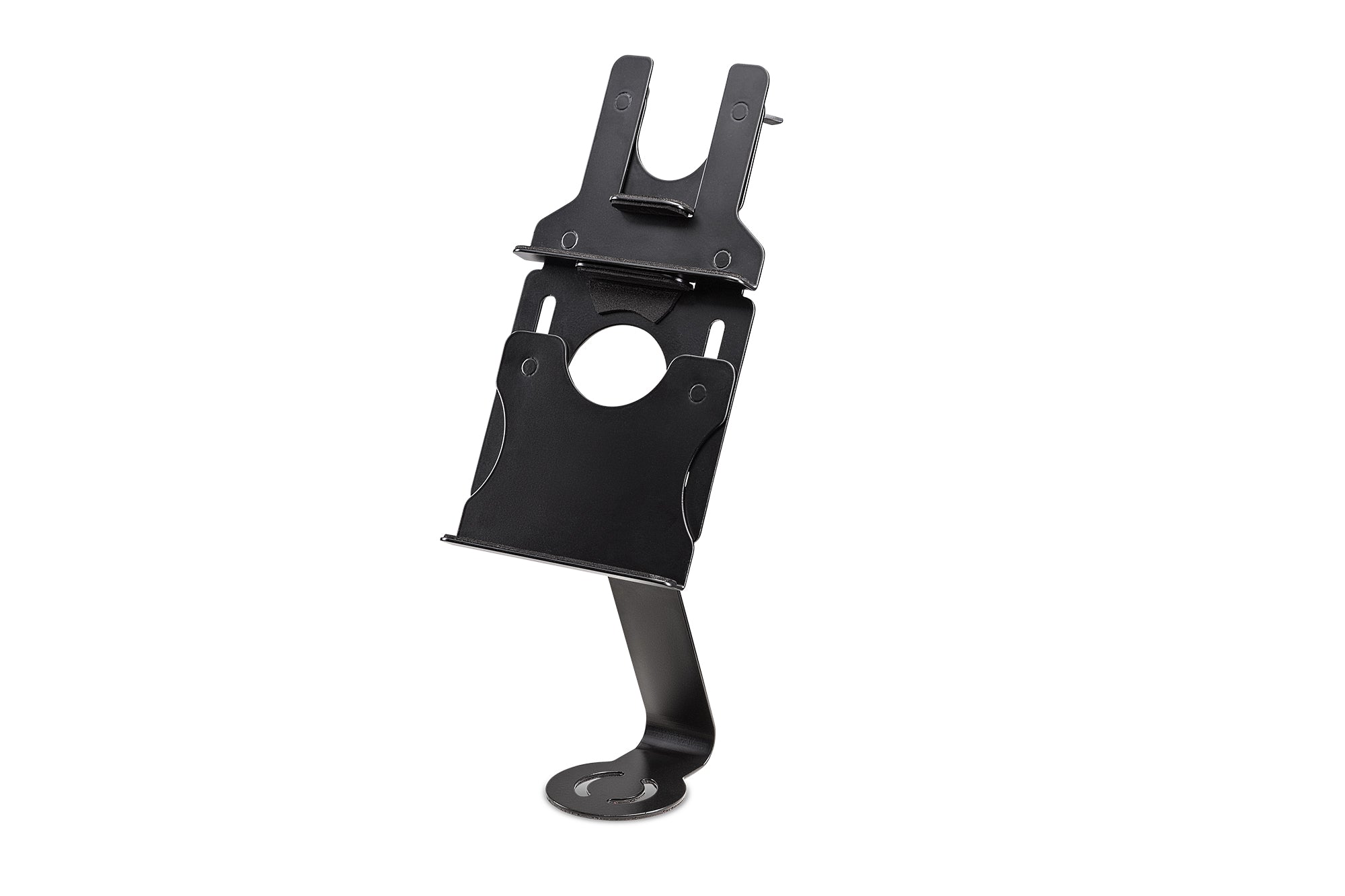

The Elite Tablet / Button Box Add-on is designed and engineered to give you the ability to mount your Tablet or Button Box in the perfect position. With a double joined configuration, the user is able to have full adjustability in distance and placement of their button box. With multiple setup configurations the user can set up with a single arm combination to achieve perfect integration. The Elite Tablet/ Button Box Add-on also offers three lateral axes of rotation for ease of movement and for fine adjustment in distance and angle. The ability for the vertical axis of rotation, allows the user to angle their button box or tablet in the optimal positioning. The mount clamps offer a 105 degree of range (90 degrees Upwards tilt and 15 degrees downward tilt). The Mount Arms adjustment is 160 degrees (80 Degrees Clockwise and 80 Degrees Counter Clockwise). For the Wheel Plate mounting variation, the angle adjustment offers 120 degrees (60 Degrees Clockwise and 60 Degrees Counter Clockwise), while the pivot angle adjustment range is 140 degrees (90 Degrees Upward tilt and 50 Degrees Downward tilt).
HIGH QUALITY AND COMPATIBILITY

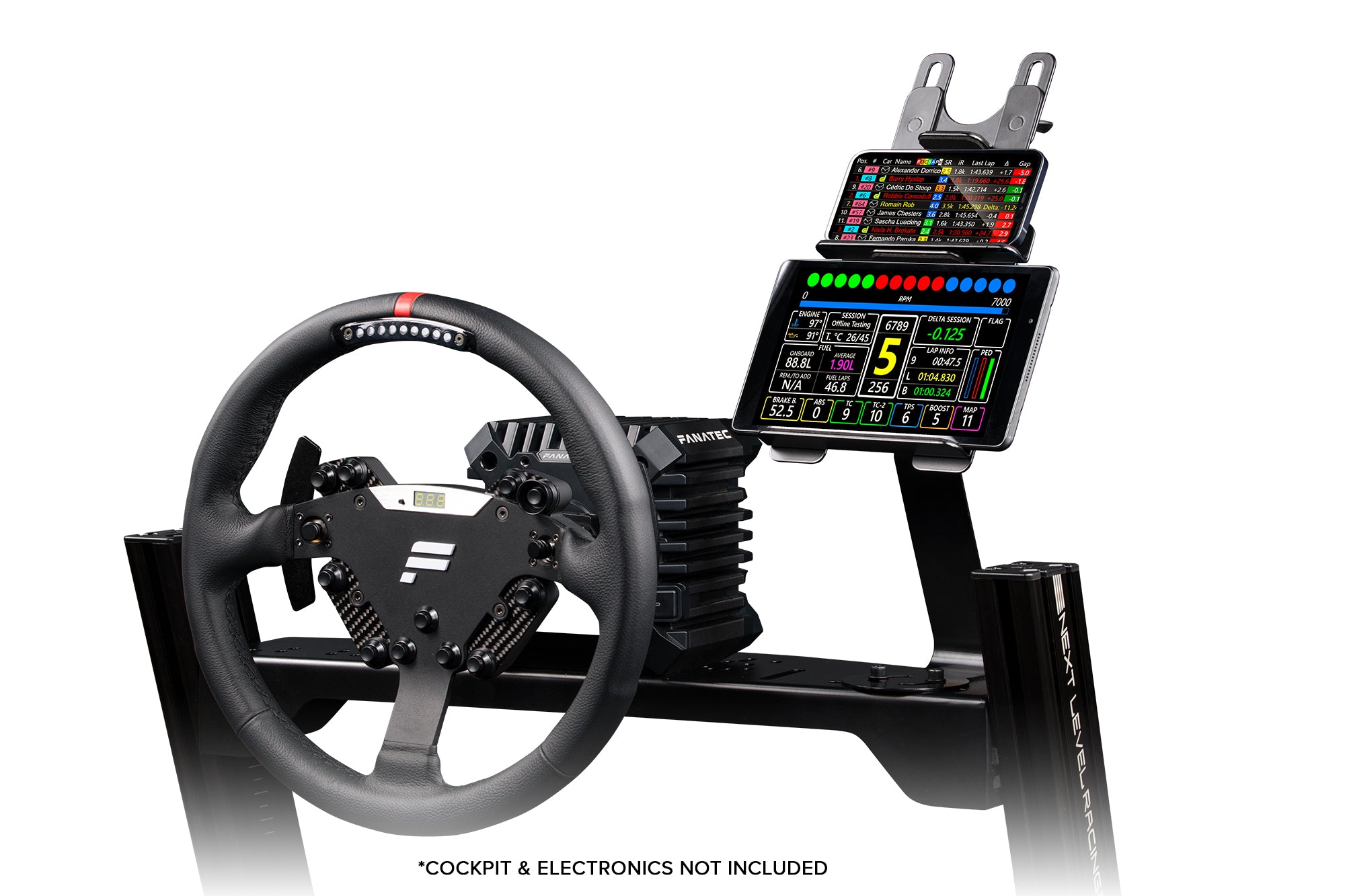

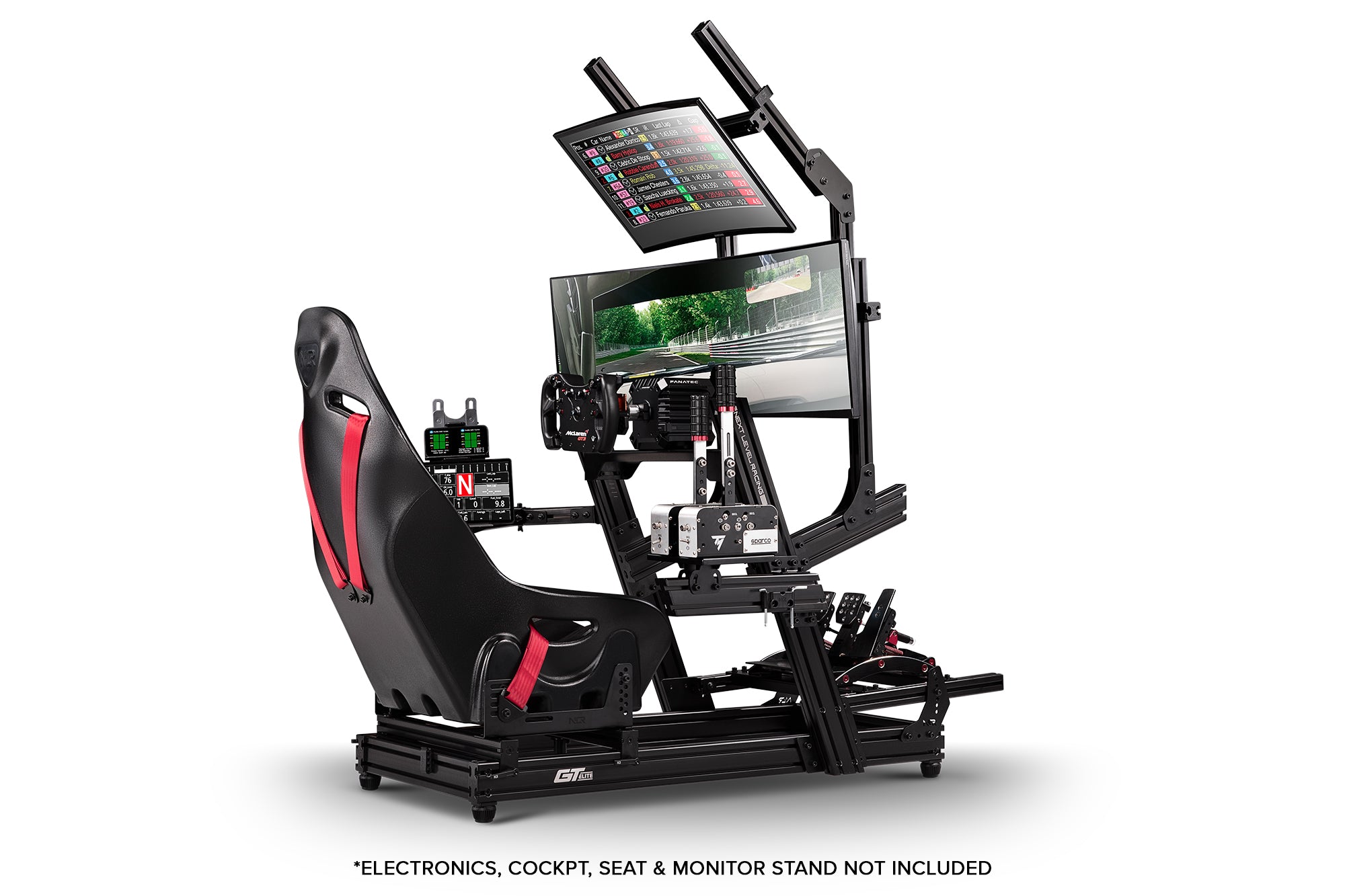

The Elite Tablet/ Button Box Add-on is constructed from a premium aluminum profile with a custom premium black anodized finish, combined with precision folded black carbon steel for added strength. With the 3-mounting variations, the Elite Tablet/ Button Box Add-on is able to be mounted to any existing Elite series cockpit and other aluminum cockpits, based on user preference and the most realistic positioning.
WHAT’S IN THE BOX
- Tablet Clamp
- Button Box/Phone Clamp
- Wheel Plate Mount Bracket
- Premium Aluminum Excursion
- Assembly Hardware
- Articulating Pivot Joints
- Cable Management Clips - Digital assembly instructions and assembly videos available here: http://bit.ly/nlr-instructions
SPECIFICATIONS
- Boxed Dimensions: 55.5 cm (L) X 33.5 cm (W) X 14.1 cm (H) 21.9 inches (L) x 13.2 inches (W) x 5.6 inches (H)
- Product Dimensions:
Measurement covering maximum range for Single Arm- 38.5cm x 15cm x 43cm or 15.2inches x 5.9inches x 16.9inches
Measurement covering maximum range for Double Arm- 63cm x 15cm x 43 cm or 24.8inches x 5.9inches x 16.9inches
Measurement covering maximum range for Wheel Deck – (H) 52cm x (W) 15cm x (D) 12cm or 20.5inches x 5.9inches x 4.7inches
- Boxed Weight: 4.5 kg or 9.9 lbs
- Part Number: NLR-E020
COMPATIBLE NLR PRODUCTS
- Next Level Racing® Elite Series Cockpits
