Fanatec CSL Elite Dash Board
This wheel base has been discontinued by the manufacturer so we do not stock this dash - Lead time will be 2-4 weeks
Compatibility: PC - 1 USB connections (includes 1- 6ft USB Cable)
Plug and play no additional software is needed

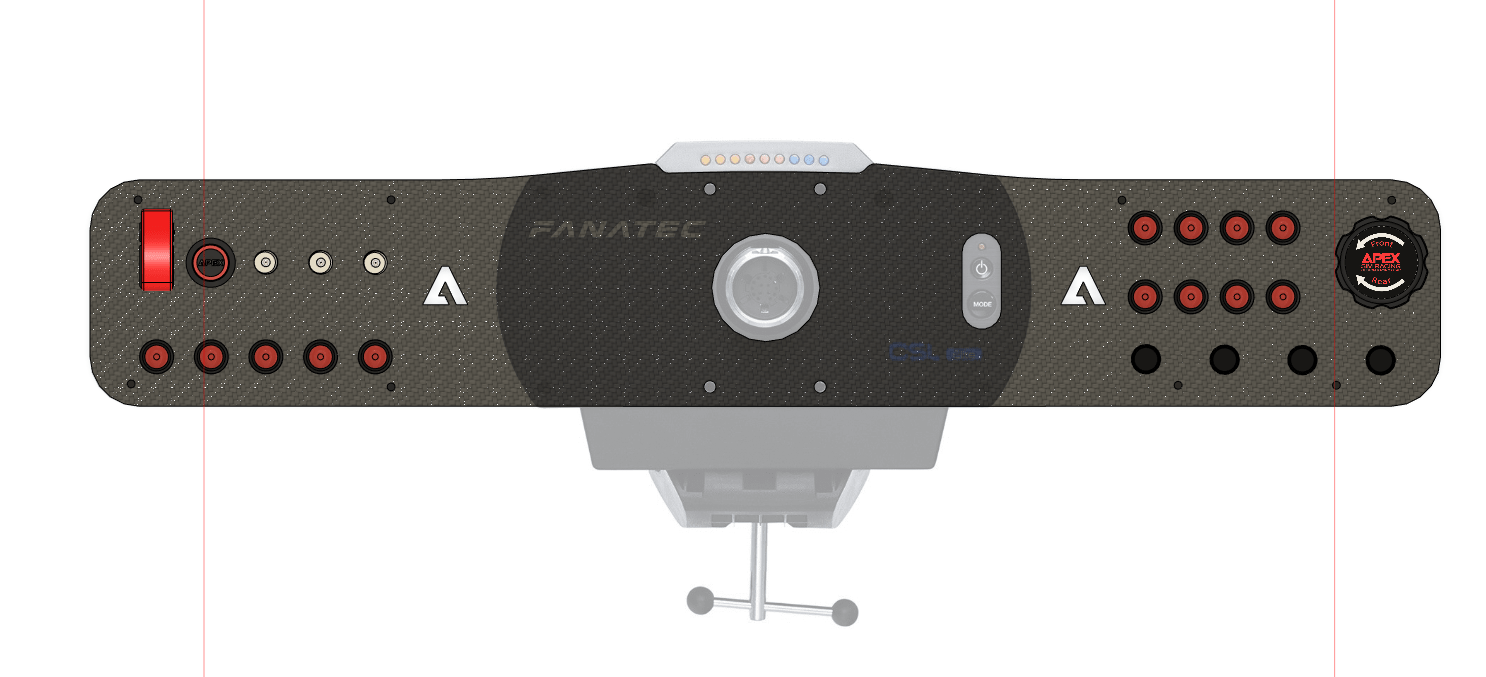

Fanatec CSL Elite Dashboard Panel
6mm Real Carbon Fiber Matte Twill Weave Plate
Mounts directly to Fanatec CSL Elite Wheelbase with supplied m6 bolts
Please confirm that this will fit your setup. The dash has enclosures + Cables that come out of the rear that will not fit certain mounts and or may need spacers to fit properly. If you are unsure please contact us
Left Side
1 - On Off Latching Toggle with Guard Programmed as momentary
1 - Apex Branded Engine Start Button
3 - MOM OFF MOM Toggles with black boot
5 - 12mm Momentary Push Buttons (Multi switch option adds a 7way multi switch to replace center push button) Up, Down, Left, Right, Push, Encoder Left & Right
Right Side
8 - 12mm Momentary Push Buttons
4 - CTS Encoders
1 - Billet aluminum Brake Bias Knob (can be used for other settings)
Some Customers have reported EMI from Fanatec wheelbases. If you are experiencing button press issues you will need to ground the dash to the wheelbase with the provided wire.
Step 1: Remove rear enclosure plate with 2mm Allen Key
Step 2: Take Wire and strip about 1 inch off. Route that wire to the wheelbase and wrap around the m6 bolt in between the rear of the dash and the front of the wheelbase as pictured below.
Step 3: Mount Dash as normal with wire between carbon plate and wheelbase
If you need assistance please Contact Support

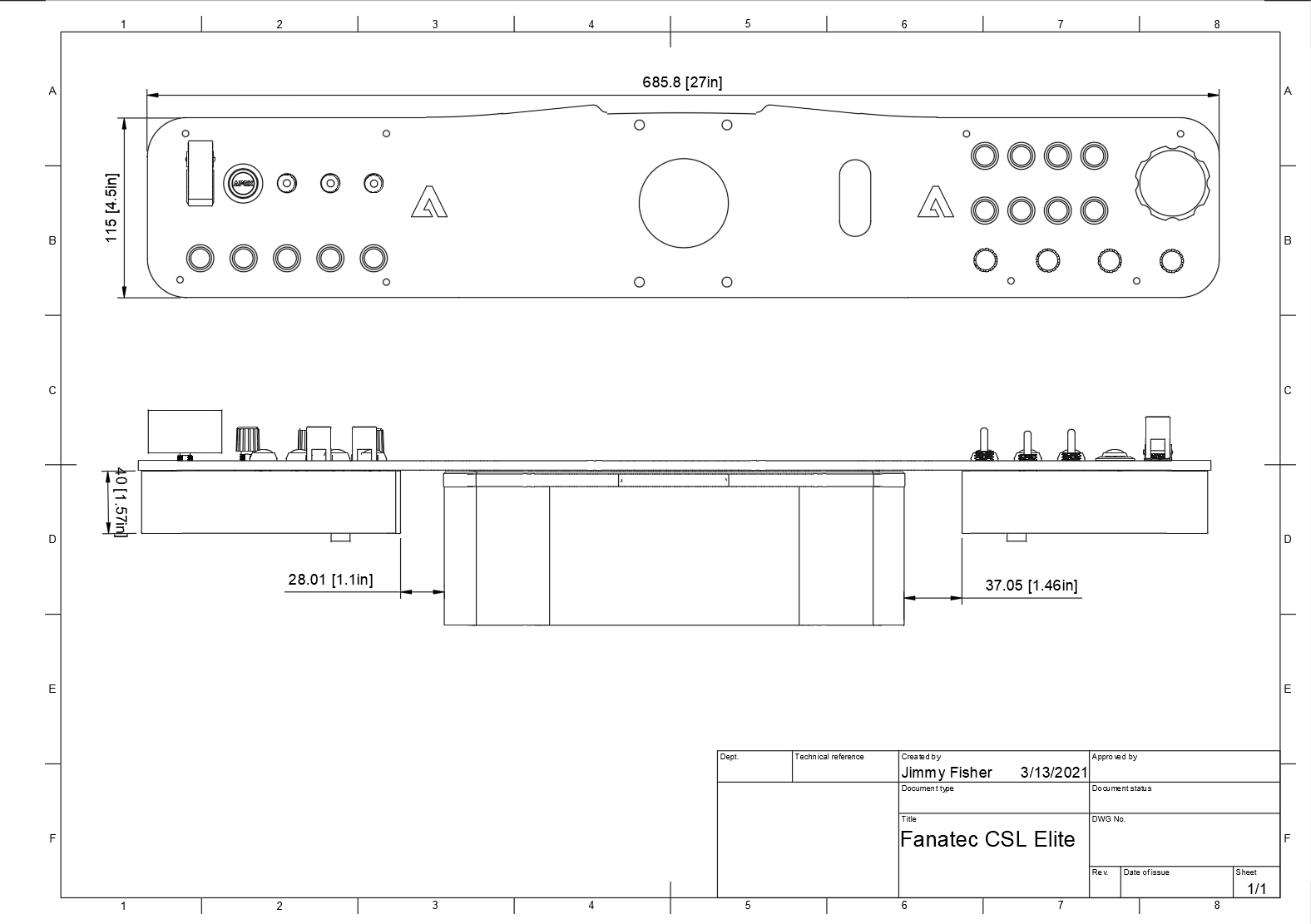

Right Click and open in new tab or save image as to see full size
