Fanatec Podium DD1 / DD2 Dash Board
Upgrade your sim racing experience with the Fanatec Podium Dash board and gain total control of your simulated race car. Expertly crafted, the Fanatec Podium Dashboard Panel by Apex Sim Racing is constructed from real carbon fiber, ensuring no flex while providing the ultimate control for your racing simulations.
Key Features:
- Compatibility: Specifically designed for PC with a single USB connection, the package also includes a 6ft USB cable for easy setup.
- Plug and Play: Furthermore, no additional software is needed. Simply connect, and you're ready to start racing.
- High-Quality Construction: Made from 6mm real carbon fiber matte twill weave plate, the dashboard is both lightweight and extremely durable.
- Direct Mounting: Additionally, it easily mounts directly to Fanatec Podium Wheelbases (DD1/DD2) using the supplied M6 bolts.
Important Fitment Note: Please ensure that the Fanatec Podium Dashboard will fit your specific setup. The dash features enclosures and cables that exit from the rear, which may not be compatible with certain mounts and could require spacers for proper installation. If you’re unsure, feel free to contact us for assistance.
Comprehensive Controls:
Left Side:
- 1 On/Off latching toggle switch with guard
- 1 Apex-branded engine start button
- 3 MOM OFF MOM toggles with black boot
- 5 12mm momentary push buttons (with the option to replace the center push button with a 7-way multi-switch, offering Up, Down, Left, Right, Push, and Encoder Left & Right functionality)
Right Side:
- 8 12mm momentary push buttons
- 4 CTS encoders for precise adjustments
- 1 billet aluminum brake bias knob, which can also be customized for other settings
Why Choose the Fanatec Podium Dashboard Panel:
- Superior Build Quality: Crafted from real carbon fiber, offering a professional and durable finish.
- Enhanced Control: Additionally, a comprehensive array of buttons, toggles, and encoders. It provides you with ultimate control over your sim racing experience.
- Easy Installation: Furthermore, it mounts directly to Fanatec Podium Wheelbases with the supplied bolts. It includes a 6ft USB cable for plug-and-play convenience.
Transform your sim racing setup with the Apex Sim Racing Fanatec Podium Dashboard Panel and immediately experience the difference in control and immersion.

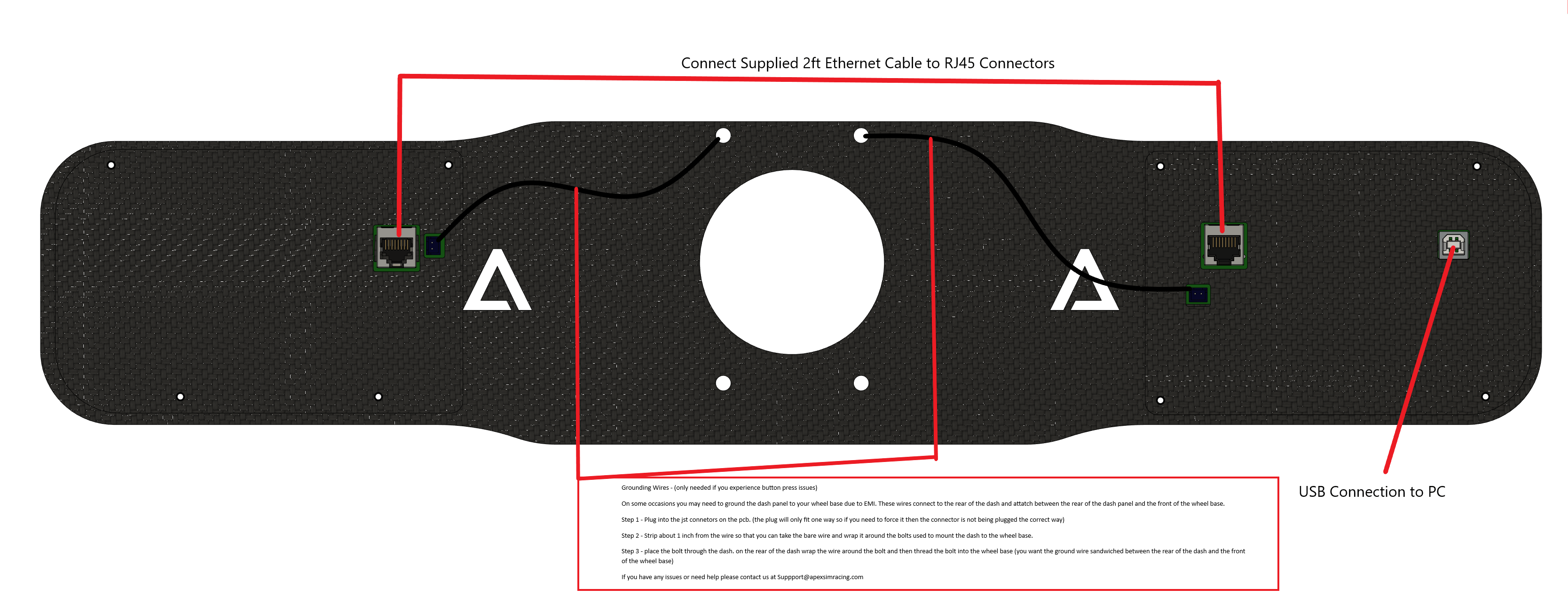

However, some customers have reported EMI issues from Fanatec wheelbases. If this occurs, and you're experiencing button press issues, you will need to ground the dash to the wheelbase using the provided wire.
To resolve the issue, follow these steps:
- Firstly, remove the rear enclosure plate with a 2mm Allen Key.
- Additionally, strip about 1 inch of the provided wire. Route the wire to the wheelbase and wrap it around the m6 bolt between the rear of the dash and the front of the wheelbase, as pictured below.
- Finally, mount the dash as normal, ensuring the wire is placed between the carbon plate and the wheelbase.
If you need assistance please Contact Support
Right Click and open in new tab or save image as to see full size
